Product Description

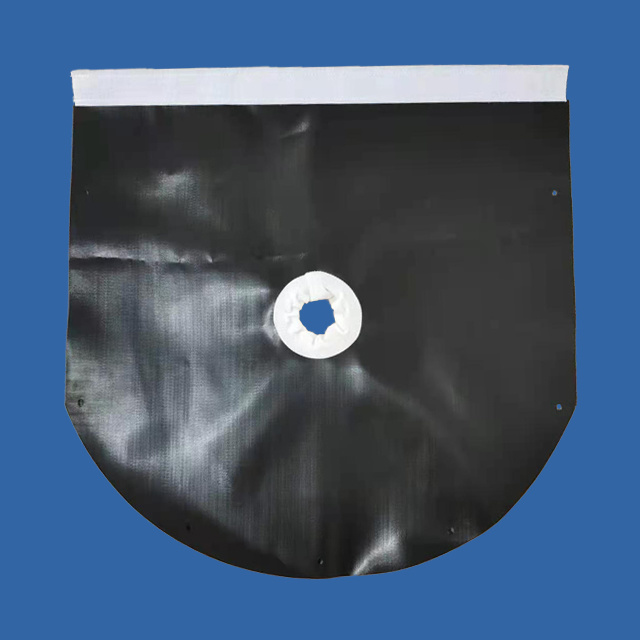

Product name: plate and frame press cloth/centrifuge bag


Type:press filter
Purpose:Filter press is divided into van type filter press, belt type filter press, belt type concentration dewatering all-in-one,is the common filtration and separation equipment of sludge and food, widely used in chemical, pharmaceutical, metallurgy, dye, food, brewing, ceramics and environmental protection industries. Filter press consists of a plurality of filter plate and filter frame superimposed to form a filter chamber, and the pressure as the driving force of the filter. Filter press for intermittent operation, there are plate and frame filter press, panel filter press and vertical filter press 3 types. Filter plate has stable performance, convenient operation, safety, labor saving, metal and plastic steel filter plate casting, high temperature resistance, high pressure, durable.
Press cloth is the heart of the filter press. The quality of press cloth fabric directly affects the filtering effect of the filter press, the investment in infrastructure, filtration efficiency and maintenance costs. Our filter press filter cloth is mainly medium and thick fabric, polyester and polypropylene material filter cloth, excellent acid and alkali resistance, oxidation resistance, high tensile strength. The joint is sewn with acid and alkali resistant high strength thread, durable.
Press cloth main specifications are 100*100, 110*110, 135*135, 160*160, centrifuge bag mainly has a diameter of 600,800,1000,1200, widely used in chemical, pharmaceutical, coal preparation, dye, brewing, metallurgy, sewage treatment and other industries of filter press, centrifuge equipment


Frame press filter bag structure: single/double page type
Centrifuge bag structure: oval
Filter bags of different sizes and materials can be customized according to the needs of users。



丙纶滤布 polypropylene filtration fabric

型 号Model

滤 料 名 称Filter material

克 重Carat weight

用 途 Usage

P750AB

丙纶过滤输送带Polypropylene filter conveyor belt

450

冶金、造纸、化工Metallurgy, papermaking, chemical industry

P750B(A)

丙纶滤布 Polypropylene

420

冶金、化工、食品Metallurgy, chemical industry, food

P700A

丙纶滤布Polypropylene

700

冶金选矿Metallurgical beneficiation

P450B

Polypropylene

450

盘式滤机disc filter

P370B

丙纶滤布Polypropylene

370

盘式滤机disc filter

P1000AB

丙纶纱滤布Polypropylene

1000

选矿mineral separation

PN1200AB

复合滤布Composite filter cloth

1200

筒式真空滤机rotary vacuum drum filte

4218

丙纶滤布Polypropylene



制糖板框内外衬滤布The sugar board frame is lined with press cloth

4219

丙纶滤布Polypropylene



制糖板框内外衬滤布The sugar board frame is lined with press cloth



  锦纶滤布 Polyamide filter cloth

型 号Model

滤 料 名 称Filter material

克 重Carat weight

用 途Usage

ZN400AB

单丝滤布monofilament
filter cloth

400

盘式滤机disc filter

ZNP380B

单丝滤布monofilament filter cloth

380

盘式滤机disc filter

ZPP350B

单丝滤布monofilament filter cloth

330

盘式滤机disc filter

NP1300AB

复合滤布Composite filter cloth

1300

筒式真空滤机Drum vacuum filter

N1200AB

锦纶滤布Polyamide filter cloth

1300

筒式真空滤机Drum vacuum filter

N800A

锦纶滤布Polyamide filter cloth

800

选矿mineral separation

N650AB

锦纶滤布Polyamide filter cloth

650

盘式滤机disc filter

N5OOB

锦纶滤布Polyamide filter cloth

500

盘式滤机disc filter

8210

锦纶滤布Polyamide filter cloth



石油脱蜡、污水处理过Oil dewaxed, sewage treatment

JLD-700

锦纶针刺过滤输送带Nylon needled filter conveyor belt

400-650

带式过滤机belt filter

DLD-680

涤纶针刺过滤输送带Nylon needled filter conveyor belt

400-650

带式过滤机belt filter

BLD-700

丙纶针刺过滤输送带Nylon needled filter conveyor belt

400-650

带式过滤机belt filter



  涤纶滤布 Polyester filter cloth

型 号Model

滤 料 名 称Filter material

克 重Carat weight

用 途Usage

3927

涤纶平纹布Polyester plain fabric



压力较大的板框压滤机High pressure plate and frame press filter

8222

涤纶斜纹布Polyester twill fabric



压力较大、透水好的板框压滤机Large pressure, good water permeable plate frame press filter

621

涤纶平纹布Polyester plain fabric

340

医药、化工、陶瓷选矿Pharmaceutical, chemical, ceramic mineral processing

729-S

涤纶长丝滤布Polyester filament filter cloth



除尘、过滤Dust removal and filtration

729

涤纶滤布Polyester filter cloth



除尘、过滤Dust removal and filtration

208

涤纶滤布Polyester filter cloth



除尘、过滤Dust removal and filtration
